Home > Gear Box Parts > Impeller
17461-94700
17461-94700 17461-94700 17461-94700
  • 17461-94700

17461-94700

Item No.: 17461-94700
Request Quote
Description Review
Description

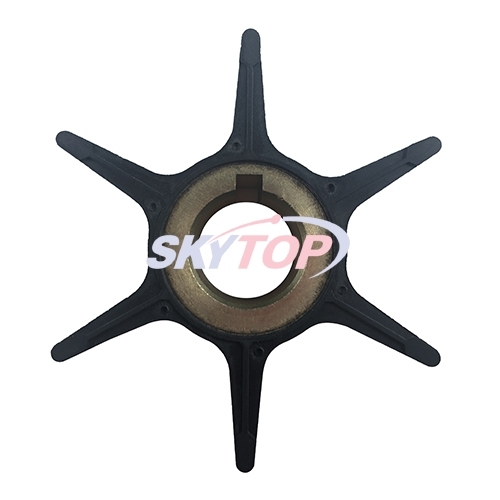

Suzuki water Pump Impeller
17461-94700
17461-94701
Sierra 18-3094
CEF 500361

Engine type :
Impellers was used on SUZUKI

2-stroke

DT35 1985-1997

DT55 1985-1997

DT60 1983

DT65 1985-1997
Impeller Dimensions:

No. Blades: 6

Depth /Height/ Width: 19.56mm

Outer/External impeller diameter: 67.05mm

Internal shaft insert/hub diameter: 16.70mm

Net Weight:72g
